Diamond Saw Blade Basics: A Comprehensive Guide for Beginners

Diamond saw blades are essential for tile, stone and ceramic processing. For beginners, grasping their basics is key to proper selection and use. This concise guide covers core knowledge of diamond saw blades.

1.What Is a Diamond Saw Blade?

A diamond saw blade features diamond segments on its edge, enabling it to cut hard materials like ceramic, mosaic, stone and low-water absorption tiles. Its steel core ensures cutting stability.

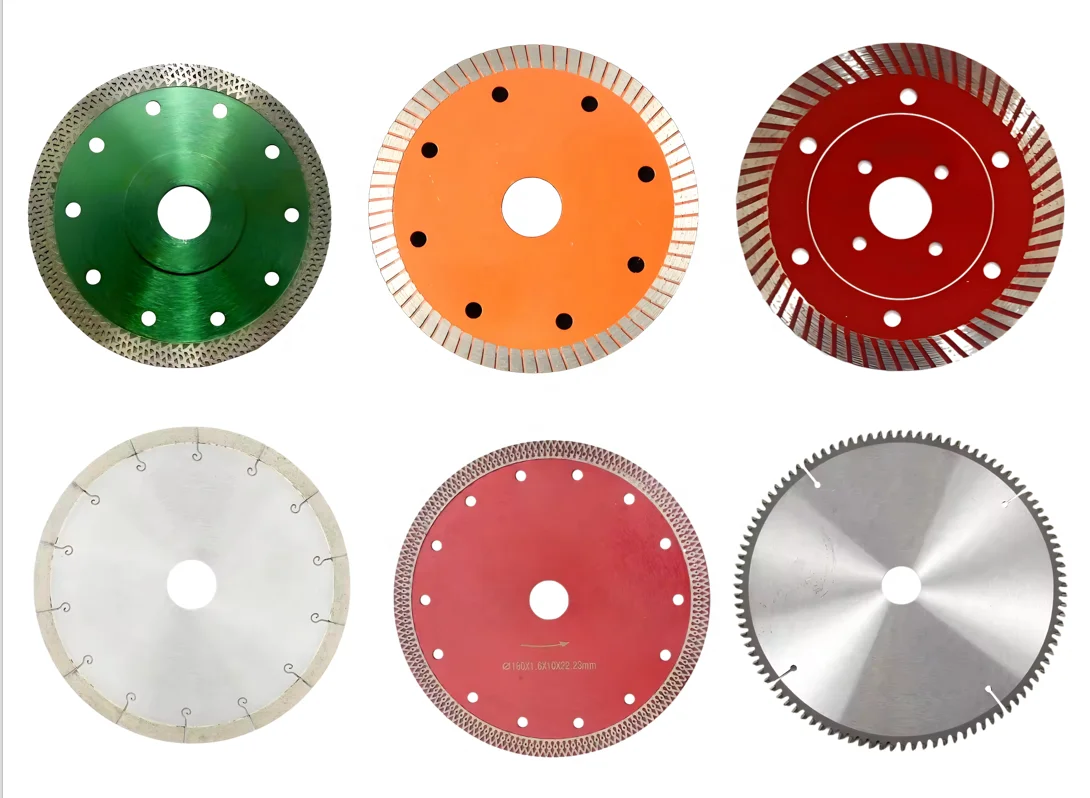

2.Core Classifications of Diamond Saw Blades

Diamond saw blades are mainly classified by application, structure and cutting method. Key categories are as follows:

2.1 Classification by Application

• Ceramic/Mosaic Tile Saw Blades: For ceramic, mosaic and low-water absorption tiles, anti-chipping. E.g., 250mm fish hook blade.


• Stone Saw Blades: For natural/artificial stone, dry/wet cut available, high diamond concentration.


• Concrete Saw Blades: For concrete, asphalt, wear-resistant and load-bearing.


2.2Classification by Structure

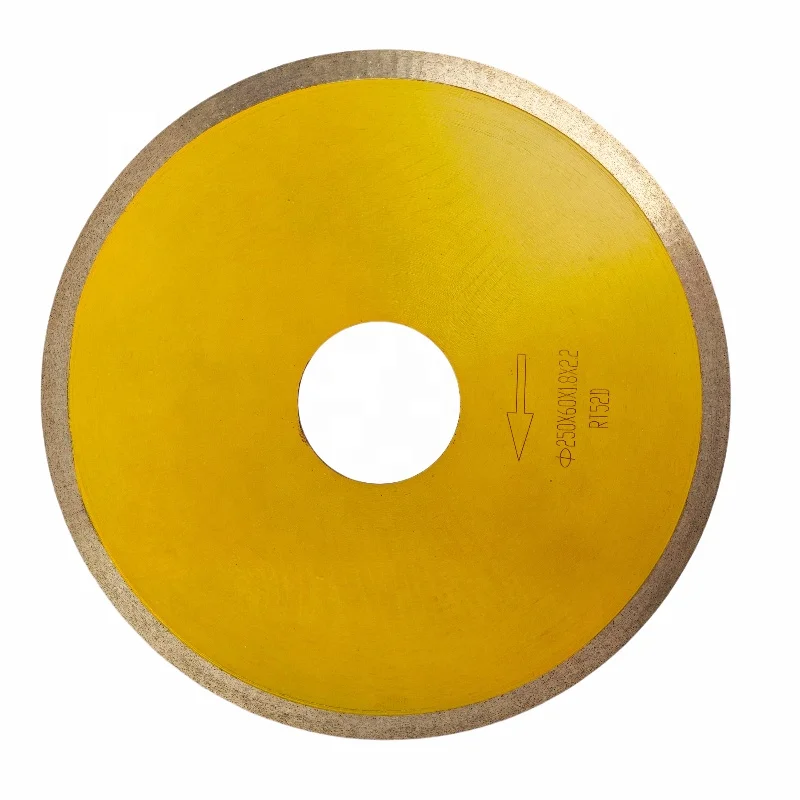

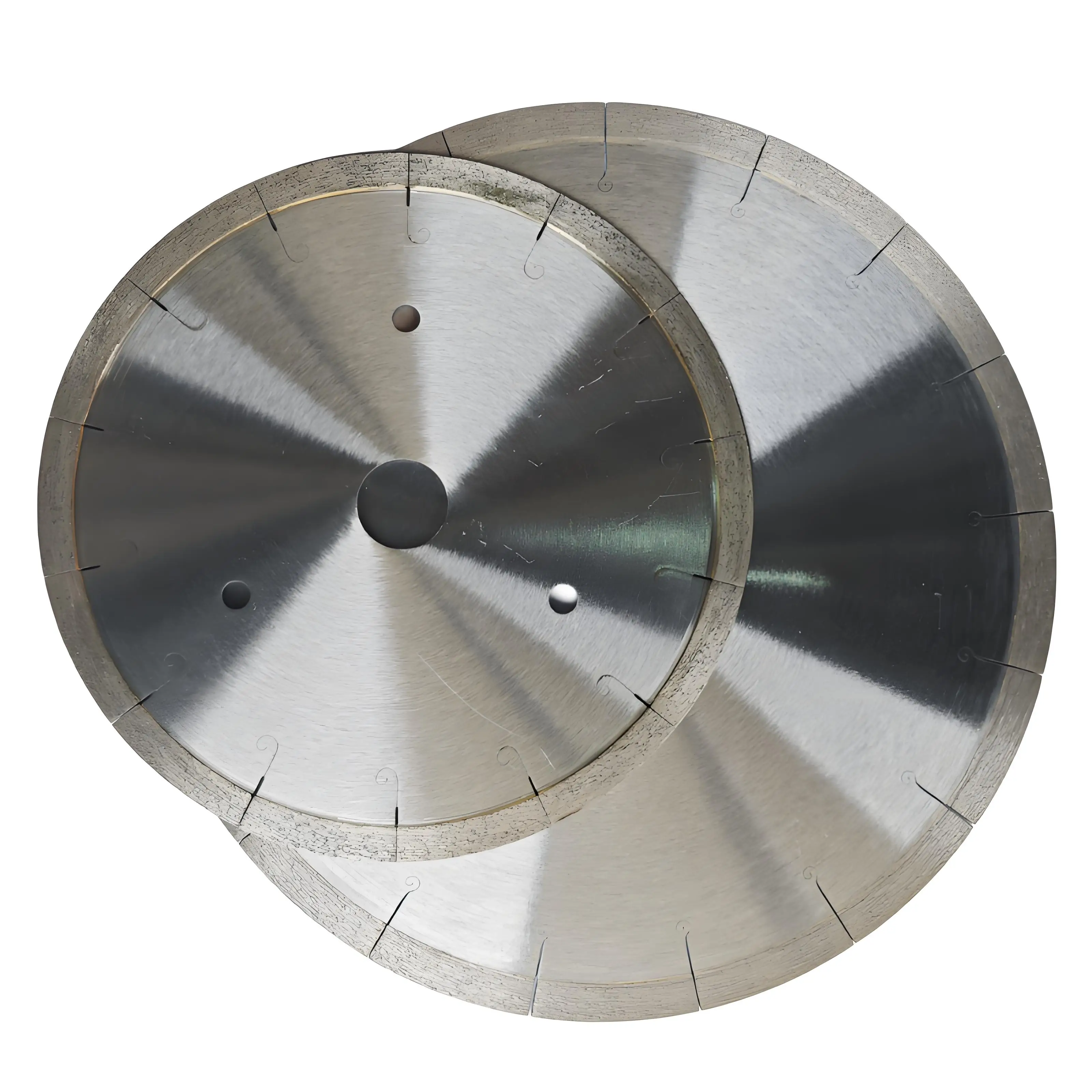

• Continuous Rim Blades: Smooth precise cuts for ceramic/glass tiles, need wet cutting.

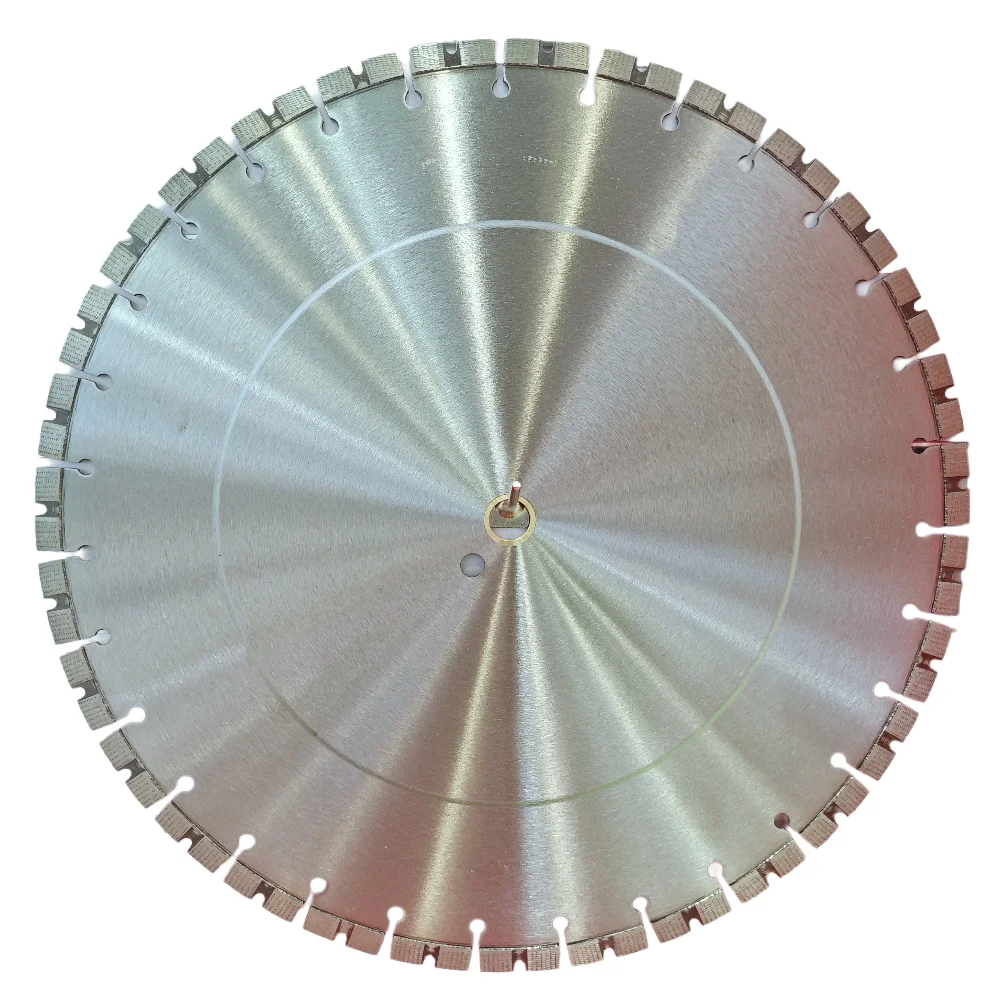

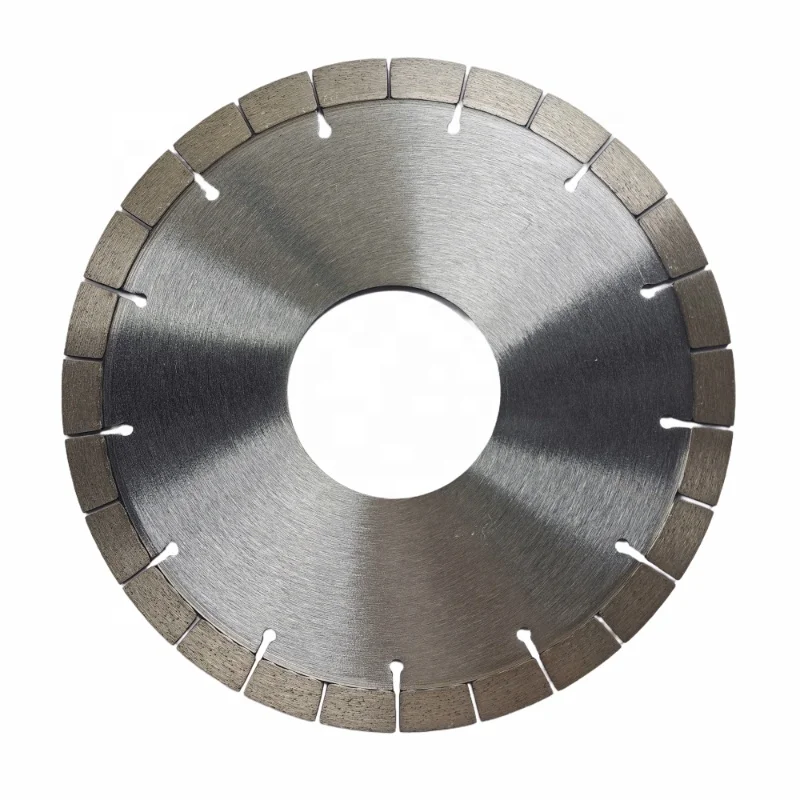

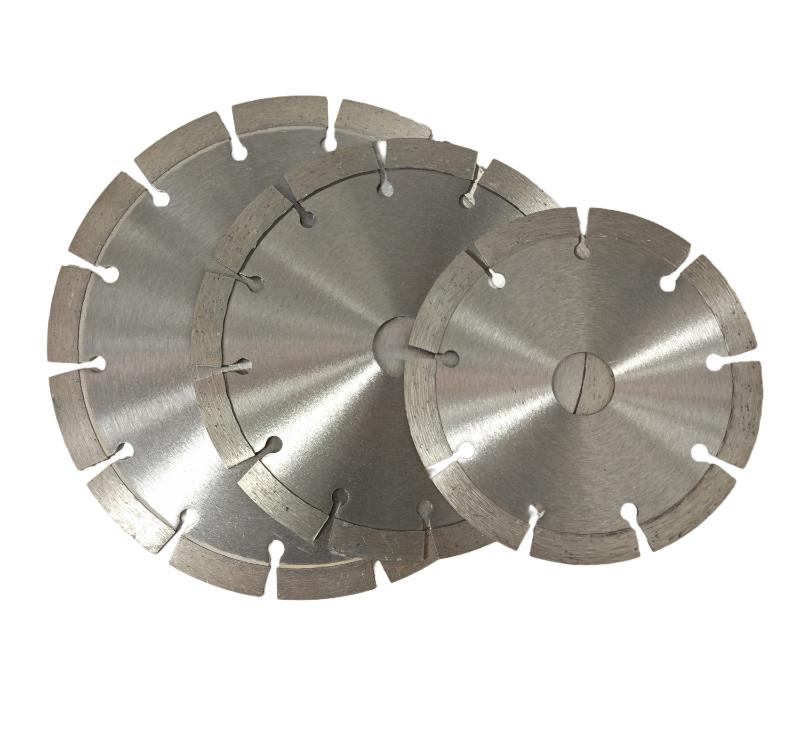

• Segmented Blades: Heat-dissipating, for dry/wet cutting of stone/concrete.


2.3 Classification by Cutting Method

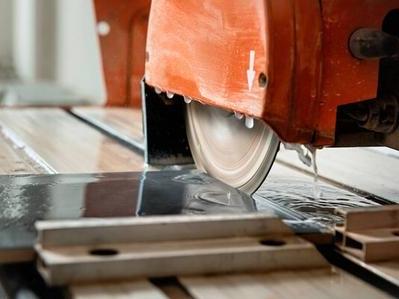

• Wet-Cut Blades: Water cooling needed, reduces wear and chipping, for professional processing.

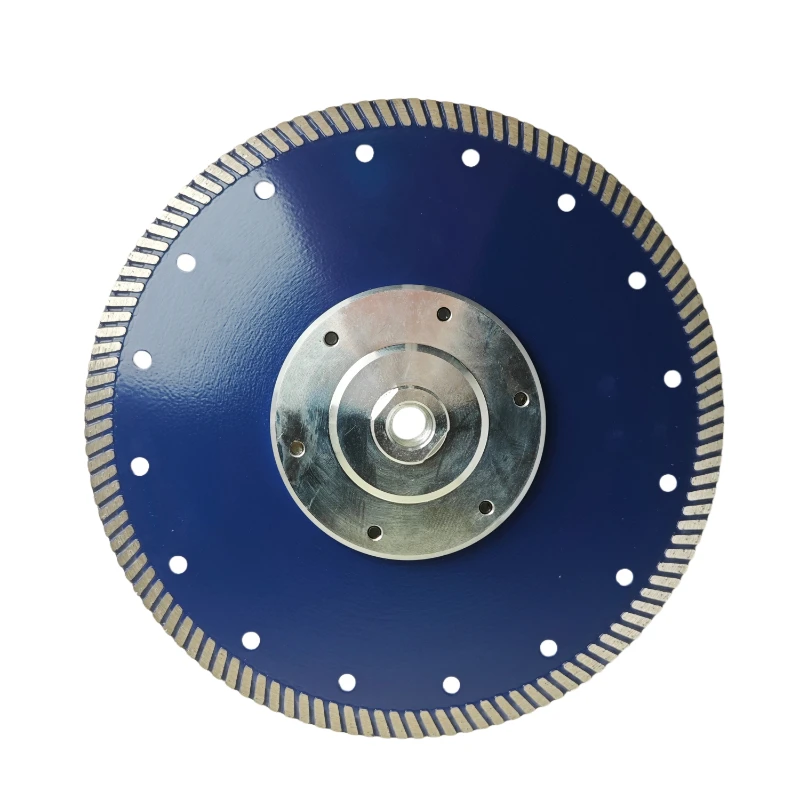

• Dry-Cut Blades: No water required, with heat-dissipating slots to avoid overheating.


3. Key Parameters of Diamond Saw Blades

Key parameters for selecting diamond saw blades are as follows:

3.1 Outer Diameter

Outer diameter determines cutting depth. Common sizes: 80mm (handheld) to more(large machines).

3.2 Inner Diameter (Arbor Size)

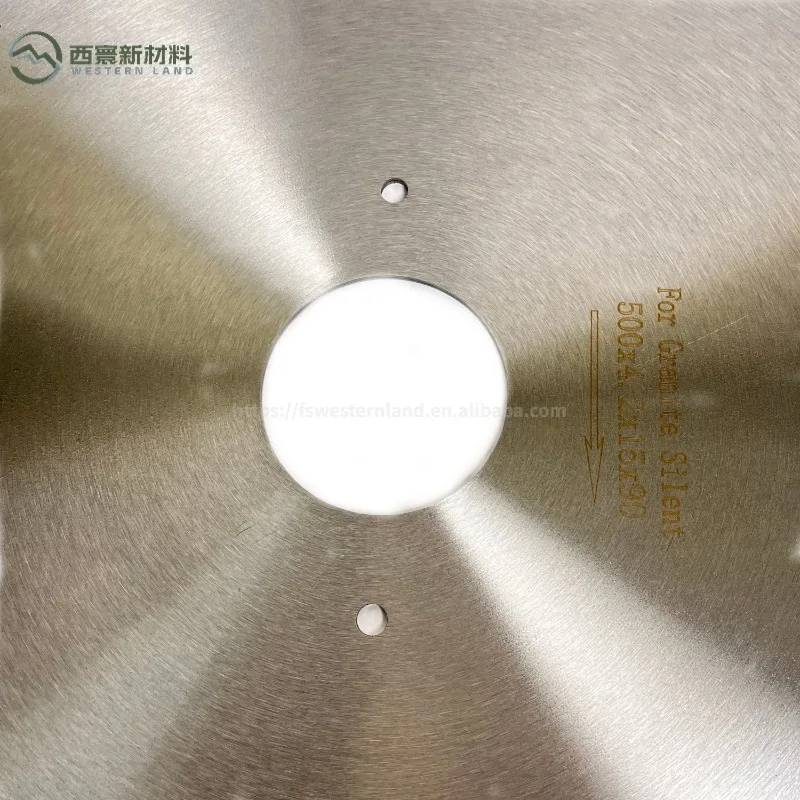

Inner diameter must match machine spindle (standard: 50mm, 60mm). Incompatible size causes vibration and danger.

3.3 Diamond Concentration

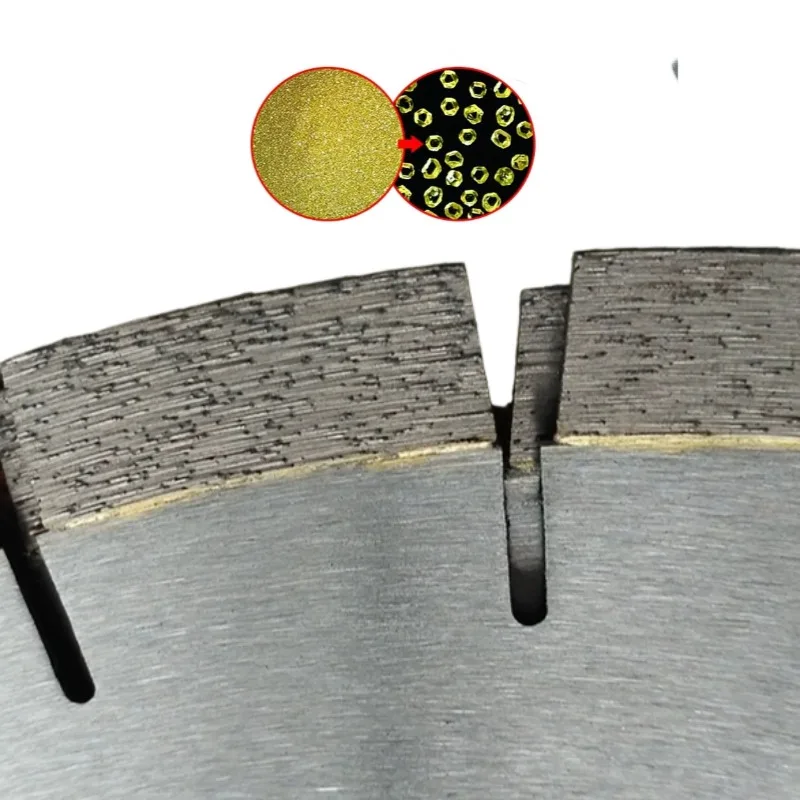

Diamond concentration refers to diamond amount in segments. High concentration: better performance, longer life (for hard materials); low concentration: cost-effective (for soft materials).

3.4 Segment Thickness & Material

Segment thickness affects cutting precision and speed. Thinner segments provide precise cuts but are less durable, while thicker segments are more durable for heavy-duty cutting. The segment material (bond) also matters: resin bonds are suitable for cutting ceramic and stone, while metal bonds are used for super-hard materials like concrete.

4. Basic Selection & Usage Tips

4.1 Selection Tips

Match blade to material:

Ceramic/mosaic-specific for tiles; stone-specific for granite/marble.

• Fit machine type:


• Ensure inner/outer diameter matches the cutting machine.

• Choose cutting method: Wet-cut for precision; dry-cut for on-site without water.


4.2 Usage & Maintenance Tips

• Start at low speed, gradually increase to recommended level.

• Ensure cooling: Continuous water for wet-cut; avoid prolonged use for dry-cut.
• Avoid excessive pressure, let the blade cut naturally.
• Inspect before use, store in dry flat place to avoid deformation.



5. Conclusion

Mastering diamond saw blade basics (classification, parameters, selection, usage) improves efficiency, ensures quality and reduces costs. Choosing and using the right blade benefits both professionals and beginners.

If you need customized diamond saw blades (such as OEM services for350mmdekton silentblades) or have specific questions about blade selection, feel free to contact our technical team for professional support.
